Description

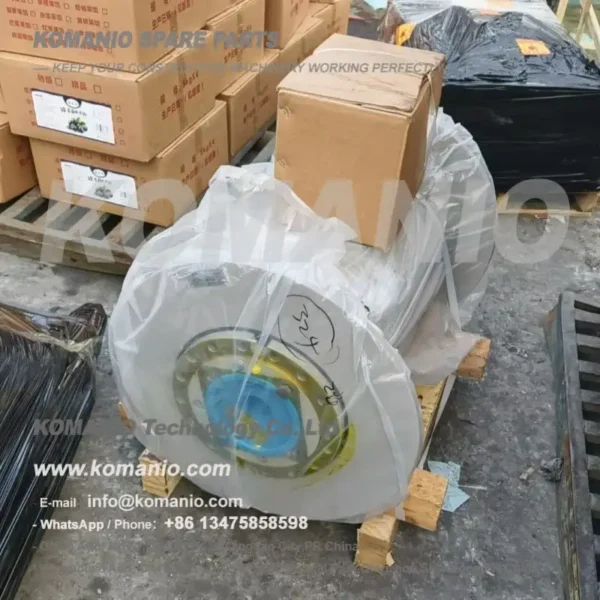

ZOOMLION 1030200699 Winch Reducer Assy for ZOOMLION Crane

Technical Support & Application Verification

● The ZOOMLION 1030200699 is identified as a Winch Reducer Assy for construction machinery crane winch drive systems.

● Available product records describe the component as a Winch ASSY Reducer Assy, while parts catalogs list it as a Winch Reducer.

● Public application references associate this material number with ZOOMLION QY50V, QY55V532 and ZRT600D532 crane platforms.

● Before installation, compare the material number, reducer housing, mounting points, shaft arrangement and original winch-system documentation.

1030200699 Application Match & Product Specifications

● Part Name: Winch Reducer Assy

● Catalog Description: Winch Reducer

● Material Number / P/N: 1030200699

● Brand: ZOOMLION

● Application Reference: ZOOMLION QY50V Truck Crane

● Application Reference: ZOOMLION QY55V532 Truck Crane

● Application Reference: ZOOMLION ZRT600D532 Rough Terrain Crane

● System Application: Crane winch drive system

● Component Category: Winch reducer assembly

Winch Drive Support for ZOOMLION Cranes

● The Winch Reducer Assy is used as a drive component within the crane hoisting and winch mechanism.

● The 1030200699 material number provides a direct reference for maintenance communication and spare-parts identification.

● The available catalog references place the reducer in the crane lifting mechanism and winch drive assembly.

● Correct matching of the reducer assembly, mounting arrangement and connected drive components helps reduce replacement risks.

● Installation and commissioning should follow the original ZOOMLION service documentation and applicable crane maintenance procedures.

The KOMANIO Advantage: Professional Crane Parts Support

● KOMANIO uses the ZOOMLION brand, material number and available crane catalog references as the primary basis for parts matching.

● KOMANIO supports ZOOMLION winch reducers, crane transmission components and construction machinery spare-parts sourcing.

● Photos of the original reducer, nameplate, mounting surface and shaft connection can help improve quotation accuracy.

● International shipment coordination is available for ZOOMLION truck crane and rough terrain crane spare-parts requirements.

Ready to Discuss Your ZOOMLION Winch Reducer Requirement?

Connect with KOMANIO for Your Parts Needs
