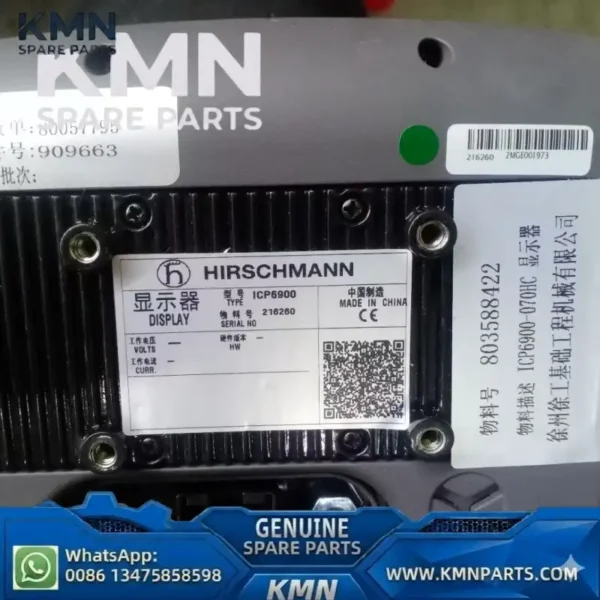

XCMG 803588422 ICP6900-070HC Display Monitor for XE7000
Product overview
● The XCMG display monitor with material number 803588422 is identified with the model ICP6900-070HC.
● Public spare-parts references associate material number 803588422 with XCMG XE7000 equipment.
● The monitor is used as an operator display and monitoring component within compatible construction machinery control systems.
● The material number and model provide essential references for spare-parts identification, maintenance communication and replacement ordering.
● Before ordering or installation, compare the original display label, connectors, mounting points, wiring and equipment parts documentation.
Product specifications
● Part Name: Display monitor
● Material Number / P/N: 803588422
● Brand: XCMG
● Model: ICP6900-070HC
● Applicable Equipment: XE7000
● Component Category: Electronic display monitor
● Application: Equipment monitoring and control display system
Application and replacement support
● The ICP6900-070HC display provides an operator interface for compatible XCMG XE7000 equipment.
● Material number 803588422 supports accurate identification during parts purchasing and maintenance planning.
● The display model, connector arrangement and mounting configuration should be checked against the original unit before replacement.
● Wiring connections and system compatibility should be verified before energizing the replacement display.
● Installation, parameter setup and commissioning should be completed by qualified service personnel according to the applicable XCMG equipment procedures.
Ordering information
● Provide a clear photo of the original display nameplate and material label.
● Share the XE7000 equipment serial number for application verification.
● Include photos of the display connectors, wiring and mounting points.
● Confirm the required quantity and destination country for quotation preparation.
● Request a final compatibility check by matching material number 803588422, model ICP6900-070HC and XE7000 equipment documentation before ordering.
