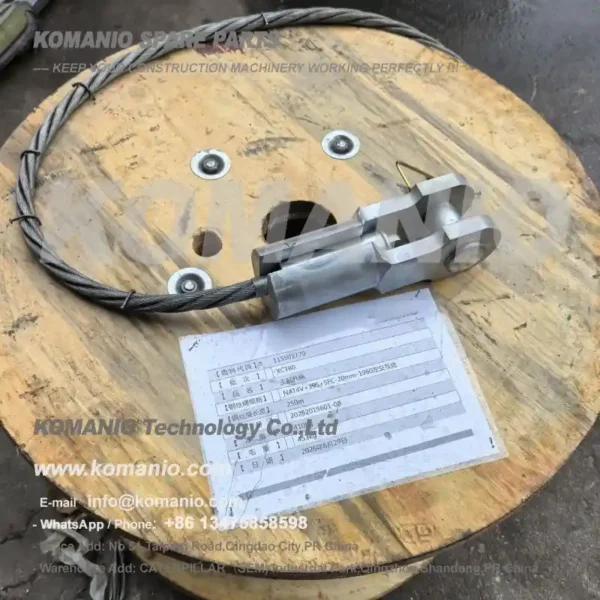

XCMG 115501770 XCT80 Truck Crane Main Hoisting Wire Rope Assembly
● XCMG 115501770 Wire Rope Technical Support
● Part number 115501770 is the genuine factory-standard high-tensile main hoisting steel wire rope assembly engineered for XCMG XCT80 truck cranes.
● Material number 115501770 features advanced 4V×39S+5FC compacted rotation-resistant strand construction with a 20mm nominal diameter and 1960 MPa high-tensile grade, spooled across 250 meters. It winds onto the main hydraulic hoist winch drum and reeves through the telescopic boom head sheaves down to the main hook block, delivering superior anti-twist stability, high breaking strength, and smooth high-speed spooling during heavy lifting operations.
● Routinely inspect outer strand wear, check end wedge socket cotter pins, lubricate rope cores with specialized crane cable dressing, and monitor rope diameter reduction to ensure complete operational safety.
● XCMG 115501770 Wire Rope Specifications
| ● Part Name | 115501770 XCMG XCT80 Crane Main Hoisting Wire Rope Assembly |
| ● Wire Rope Specification | NAT 4V×39S+5FC-20mm-1960 Left Regular Lay (1960 MPa Grade) |
| ● Total Rope Length | 250 m |
| ● Net Weight / Gross Weight | 410 kg (Net Weight) / 453 kg (Gross Weight) |
| ● End Fitting Type | Pre-Installed Heavy-Duty Open Wedge Socket with Safety Clevis Pin |
| ● Mounting Position | Main Hoisting Winch Drum & Telescopic Boom Sheaves |
| ● Equipment Compatibility | XCMG XCT80 Truck Cranes & Heavy Mobile Cranes |
Compatibility note: Applicable to XCMG XCT80 truck cranes. Verify winch drum groove pitch, sheave groove radius, and reeving parts of line prior to installation.
● XCMG 115501770 Wire Rope Key Advantages
- 100% genuine factory-standard main hoisting wire rope assembly matching XCMG material number 115501770 and crane safety standards.
- High-tensile 1960 MPa grade steel strands delivering exceptional breaking force, fatigue resistance, and extended working life under heavy duty cycles.
- Compact 4V×39S+5FC rotation-resistant cross-section minimizing cable spin, hook rotation, and structural twisting at high lift heights.
- Pre-fitted precision open wedge socket terminal enabling rapid, secure hook connection and safe load termination on crane boom tips.
- Comprehensive supply chain support for XCMG winch motors, hoist brakes, boom sheaves, hook blocks, limit switches, and wire rope guides.
